Products

Verified equipment from generators to air conditioning units.

Power Supply

Single Generators

WARMBOLD single generators can be freely combined for TWIN-operation.

12,5 kVA

Supersilent

Length	1.430 mm
Width	690 mm
Height	1.370 mm

23 kVA

Supersilent

Length	1.770 mm
Width	790 mm
Height	1.190 mm

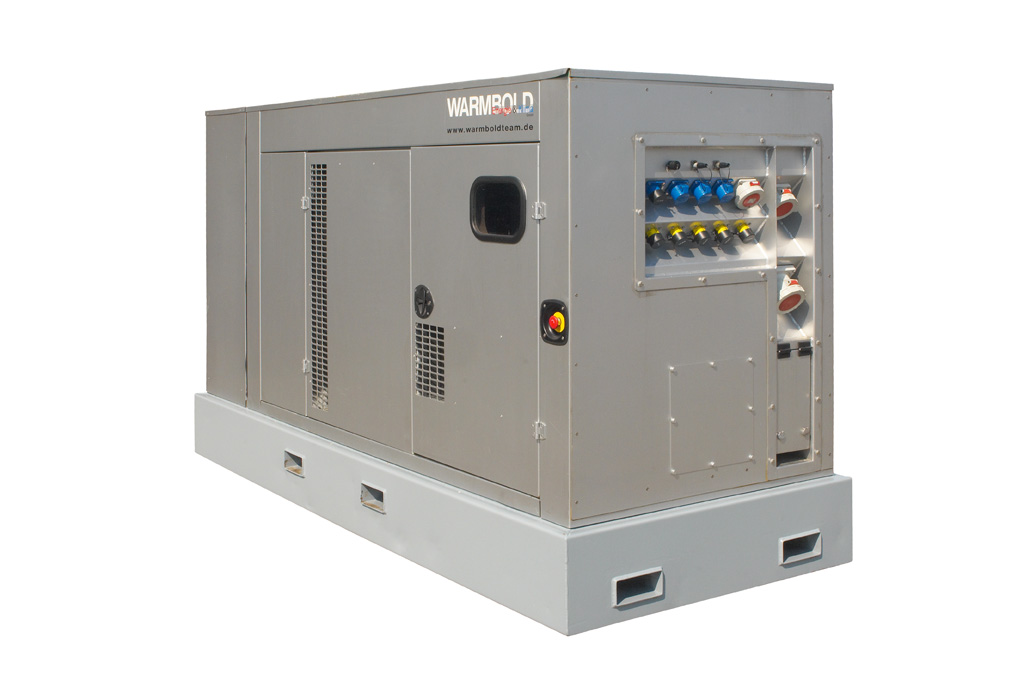

100 kVA

Supersilent
Available with synchronous power take-over
Available with frequency adaption for controlled shut-downs of photovoltaik systems

Length	3.170 mm
Width	1.150 mm
Height	1.730 mm
Weight	3.000 kg filled

175 kVA

Supersilent

Length	4.100 mm
Width	1.150 mm
Height	2.000 mm
Weight	3.500 kg filled

200 kVA

Supersilent
Available with synchronous power take-over
Available with frequency adaption for controlled shut-downs of photovoltaik systems

Length	4.500 mm
Width	1.200 mm
Height	2.000 mm
Weight	5.500 kg filled

TWIN Generators

TWIN 500 kVA

Supersilent
Available with synchronous power take-over
Available with frequency adaption for controlled shut-downs of photovoltaik systems

Length	6.000 mm
Width	2.400 mm
Height	2.650 mm
Weight	13.000 kg filled

TWIN 600 kVA

Supersilent
Available with synchronous power take-over
Available with frequency adaption for controlled shut-downs of photovoltaik systems

Length	6.000 mm
Width	2.400 mm
Height	2.900 mm
Weight	17.500 kg filled

Additional Energy Equipment

External fuel tanks
Transfer switch units
Synchronisation units
UPS-systems (uninterrupted power supply)
Various transformers

Power Distribution

Switchboard Plant 3.500 / 2.500 A

For parallel mains mode
Distribution bar system up to 3,500 A
Motor-driven power switch switch In=2500A for either net input or output

Length	3.000 mm
Width	2.400 mm
Height	2.650 mm
Weight	ca. 2.500 kg

Switchboard Plant 2.500 / 1.500 A

For parallel mains mode
Distribution bar system up to 2,500 A
Motor-driven power switch switch In=1,600A for either net input or output

Length	3.000 mm
Width	2.400 mm
Height	2.650 mm
Weight	ca. 2.500 kg

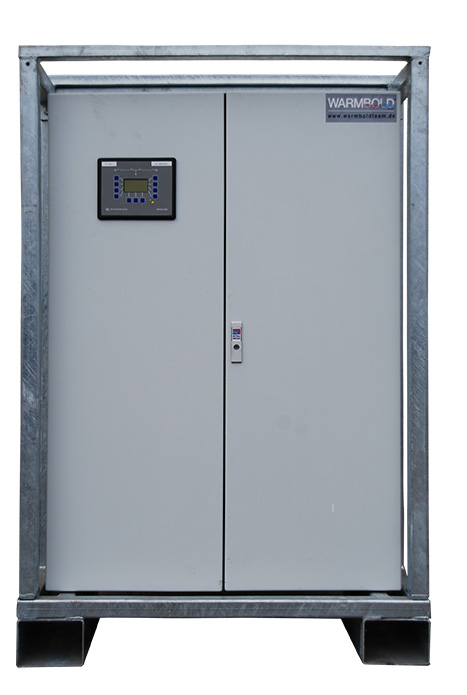

Switchboard Plant with automated parallel mains operation

Switch-disconnector-fuse up to NH-3 or main switch In=630 A
Frequency and voltage control
Internal disturbance recorder
Visualisation
Error and disturbance message via GSM

Length	425 mm
Width	1.120 mm
Height	1.680 mm
Weight	ca. 200 kg

Applicable in combination with WARMBOLD generators

parallel mains operation
Peak capacity operation
Emergency power operation
Generator or fixed current operation

Modular Distribution System 800 A

With variable CEE outlets
On request with separate electric meters per 32 A CEE and Schuko outlets
On request with three adjustable 250 A RCD

Length	1.100 mm
Width	700 / 800
Height	1.600 mm
Weight	200 kg

Switch-disconnector-fuse Distribution (NH) 1.200 A

Length	860 mm
Width	590 mm
Height	1.350 mm
Weight	80 kg

Powerlock Distribution 400 A

Outlets: 125, 63, 32, 16 CEE, Schuko
Also available with 3 x 125 A CEE outlets

Length	610 mm
Width	510 mm
Height	1.470 mm

Compact Distribution Boxes 63 / 125 A

Outlets: 63, 32, 16 CEE, Schuko

Length	580 mm
Width	330 mm
Height	650 mm

Compact Distribution Boxes 63 / 125 A

Outlets: 125, 63, 32, 16 CEE, Schuko
Available with seperate measurable outlets

Length	860 mm
Width	590 mm
Height	1.350 mm

more various Compact Distribution Boxes

63 A CEE --> 2 x 32 A CEE
32 A CEE --> 16 A CEE, Schuko
32 A CEE --> 6 x Schuko

Measuring Units

Direct measuring unit 100 A

On request with installed counter

Length	500 mm
Width	300 mm
Height	1.350 mm
Weight	40 kg

Transforming Measuring Unit 800 A

On request with installed calibrated energy transducer (certified) and counter

Length	1.000 mm
Width	400 mm
Height	1.000 mm
Weight	50 kg

Lighting

Light tower

variable applicable
equipable with different headlights

Length	1.200 mm
Width	800 mm
Height	bis zu 6.000 mm

HQI

different capacity
external or internal ballast

More

Powermoon
Halogen spotlights
Fluorescent lamps

Air Conditioning

Heatpumps

350 kW / 380 kW

Heatpump with external settlingtank

Length	4.680 mm
Width	2.380 mm
Height	2.100 mm
Weight	4.000 kg

130 kW / 150 kW

Heatpump with integrated settlingtank

Length	3.500 mm
Width	1.200 mm
Height	2.300 mm
Weight	1.800 kg

60 kW / 80 kW

Heatpump with integrated settlingtank

Length	2.400 mm
Width	900 mm
Height	1.500 mm
Weight	800 kg

Air Handler

130 kW / 150 kW

Air power gradually adjustable max. 21,000 m?/h
Automatic temperature adjustment
Air outlet by 3 x 500 mm ductings

Length	2.400 mm
Width	1.200 mm
Height	2.300 mm
Weight	1.500 kg

Air Tower

100 kW / 130 kW

Air power gradually adjustable max. 11,000 m?/h
Fresh air input on back
Manual switch cooling/ heating
Automatic temperature adjustment
Air outlet by 3-side top box

Length	1.850 mm
Width	1.000 mm
Height	2.560 mm
Weight	850 kg

Mobile Heating Units

260 kW

With integrated circulation pump and expansion tank
Stainless steel chimney up to height of 15m
Consumption 12 - 20l

Length	2.400 mm
Width	1.300 mm
Height	1.900 mm

650 kW

With integrated circulation pump and expansion tank
Stainless steel chimney up to height of 15m
Consumption 40 - 60l

Length	3.000 mm
Width	2.400 mm
Height	2.650 mm

Fan Coil

10 kW

Length	1.455 mm
Width	230 mm
Height	655 mm

Fan Coil Tower

20 kW

3-level adaptable air volume stream
Manual switch for cooling/heating
automatic temperature adjustment
Integrated condensation water pump

Length	585 mm
Width	380 mm
Height	1.850 mm
Weight	60 kg

Electric Heater

15 kW

Heating / Ventilation
Blower adjustable in 3 steps
Temperature continuously variable

Length	350 mm
Width	400 mm
Height	450 mm

8 kW

Heating / Ventilation
Blower adjustable in 3 steps
Temperature continuously variable

Additional AC equipment

Split AC
Innovative air distribution systems for integration into interior design

Water Supply

Water Regeneration Systems

Fresh Water Regeneration System

With integrated UV-filter for fresh water regeneration

Length	6.000 mm
Width	2.400 mm
Height	2.650 mm

Water Softener

Waste Water Pumps

Waste Water Pump

PE-tank ca. 50 l
Inflow DN 100
Hmax = 7 m
heatable

Length	650 mm
Width	550 mm
Height	843 mm
Weight	55 kg

Compact Waste Water Pump

PE-tank ca. 15 l (WEK), ca. 30 l (FF)
Filling head ca. 50 mm
Inflow 2-3 x GEKA
Discharge connection: GEKA
Hmax = 7 m

Separators

Fat separator

Fat tank 9 l
Sludge tank 10 l

Length	475 mm
Width	585 mm
Height	485 mm
Weight	9,75 kg

Coalescence Separator

Inflow DN150 (DA = 160 mm)
Outlet DN150 (DA=160 mm)
Oil tank 187 l
Sludge tank 1,000 l

Length	2.080 mm
Width	1.200 mm
Height	1.930 mm
Weight	395 kg

Additional Water Equipment

Fresh water distributors
Flexible fresh water pipes
